CNC lather SCHAUBLIN 125 CCN

Characteristics

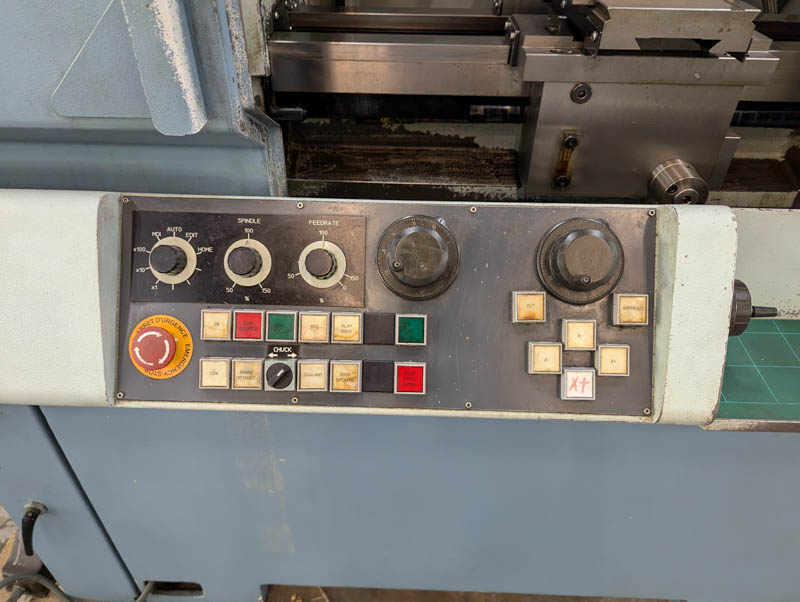

FANUC 20T control

Capacities

Max. turning diameter Ø 270 mm
Max. diameter above carriage: Ø 130 mm
Tip height above slide: 60 mm
Bar passage: 28 mm
Maximum passage through B32 collets: 24 mm
Maximum diameter in chuck: 150 mm

CAMLOCK D1-3" spindle

Spindle for B32 collets
Spindle speed : 0 - 5'000 min-1
Power at 50/100% : 7.5/5.5 kW

Cross slide
Cross travel, X axis: 180 mm
Longitudinal travel, Z axis: 410 mm

Feed rates
Working feeds, X and Z axes, without step: 0 - 5 m/min
Rapid feeds, X and Z axes: 7.5 m/min
Feed forces, X / Z axes, continuous: 500 daN

Tailstock
Spindle sleeve taper: Morse 3
Spindle outer diameter: 45 mm
Spindle stroke: 160 mm

Coolant
Tank capacity: 55 L

Power supply: 3x380V
Dimensions: 1700 x1650x1170 mm
Weight: ~1415 kg
