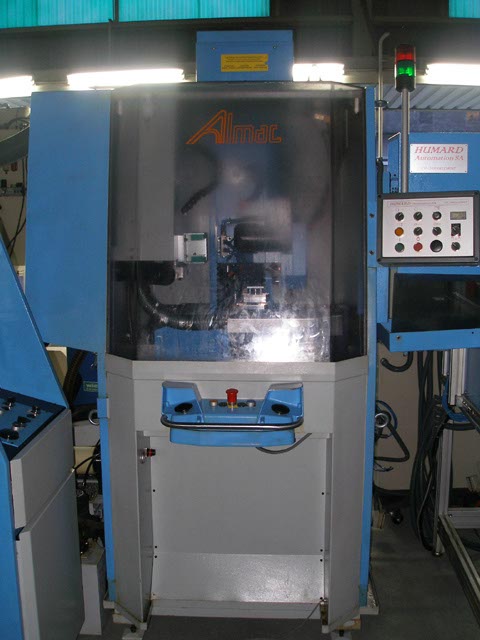

Machining center ALMAC CU1005
| State | Used |
|---|---|
| Category | Machining centre |
| Brand | ALMAC |
| Model | CU 1005 |
| Serial number | 082-160A-338 |
| Year of manufacture | 2000 |
| Inventory number | 0789 |
Characteristics
Table length : 350 mm
Table width : 140 mm
Longitudinal travel (X-axis) : 220 mm
Transversal travel (y axis) : 120 mm
Vertical travel (z axis) : 170 mm
Table divisions (B) : 360 °
Table divisions (C) : 110 °
Tool changer : 20 tools
Spindle nose : SKI 16
Feed range : 0 - 5'000 mm/min
Rapid traverse: 12 m/min
Voltage : 3x400 V / 50 Hz
Spindle motor : 1.5/3.4 kW
Total power required : 6 kVA
Machine's weight about : 1500 kg
Overall dimensions machine
Length 1830 mm
Width 1250 mm
Height 1750 mm
