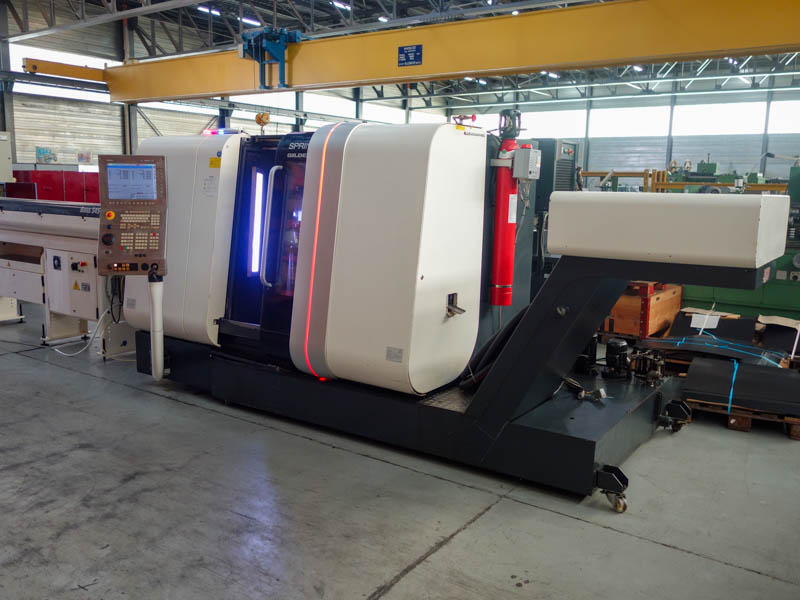

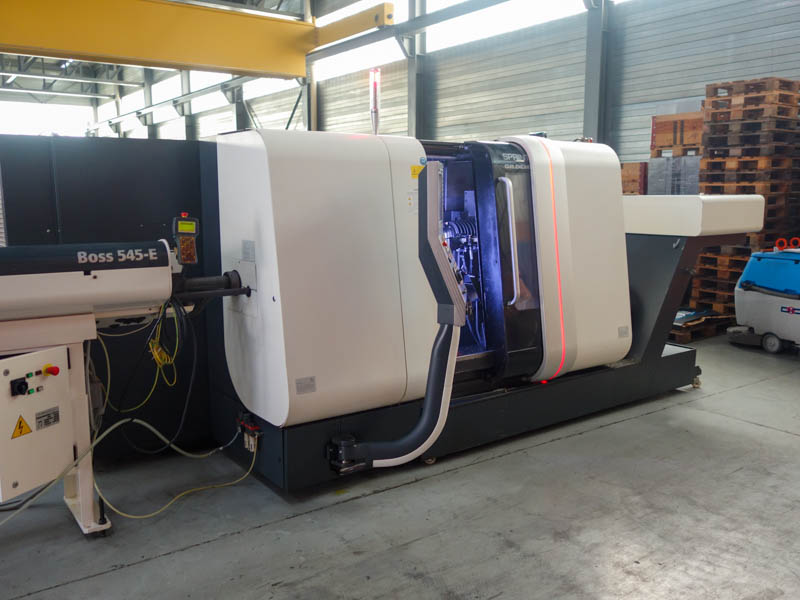

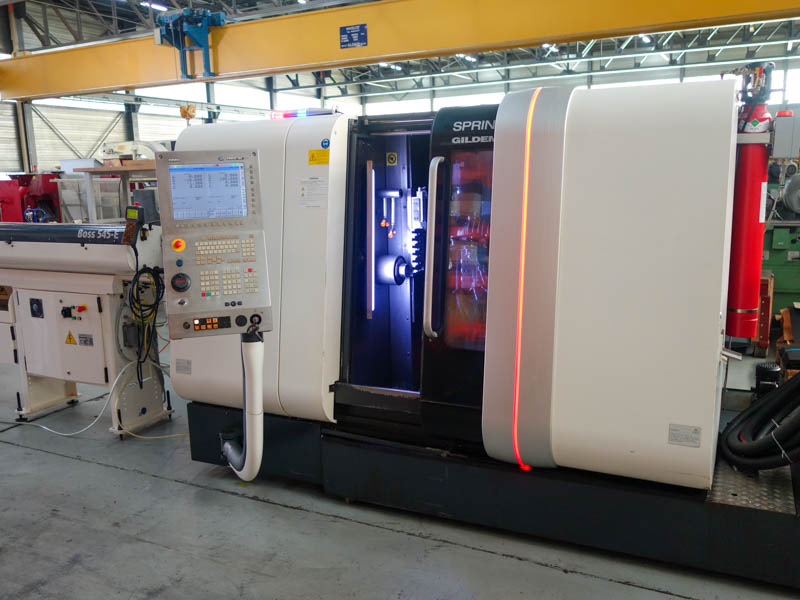

CNC lathe GILDEMEISTER SPRINT 42 LINEAR
| State | Used |
|---|---|
| Category | Lathe |
| Brand | GILDEMEISTER |
| Model | SPRINT 42 LINEAR |

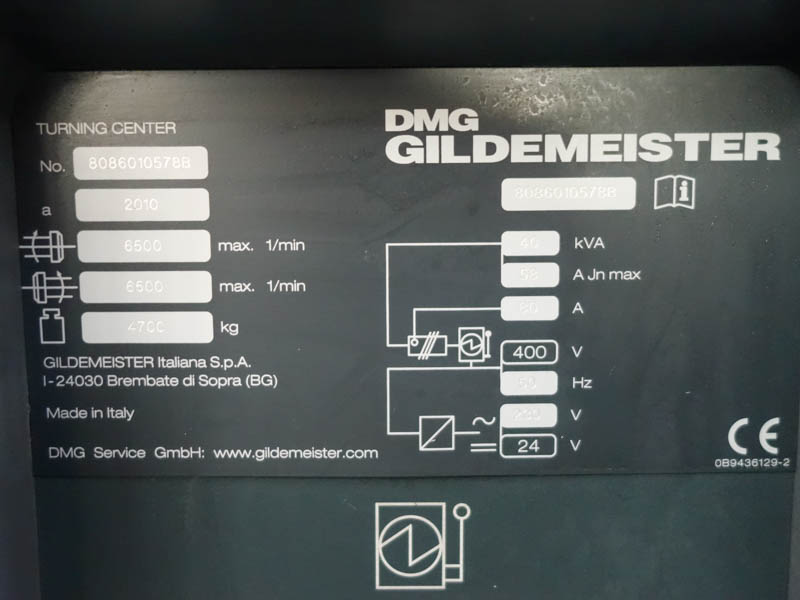

| Serial number | 8086010578B |
| Year of manufacture | 2010 |
| Inventory number | 3428 |
Characteristics
Number of axes : 8
Number of spindles : 2

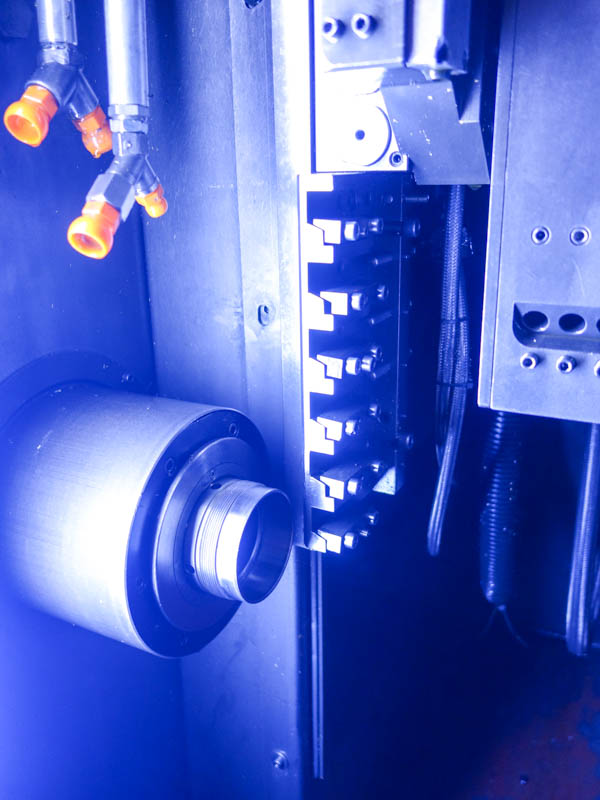

Main spindle
Spindle power : 5.5 kW
Spindle speeds : 6500 rpm
Max. bar diameter : 42 mm
Z stroke : 120 mm
C axis indexing precision : 0.001 °

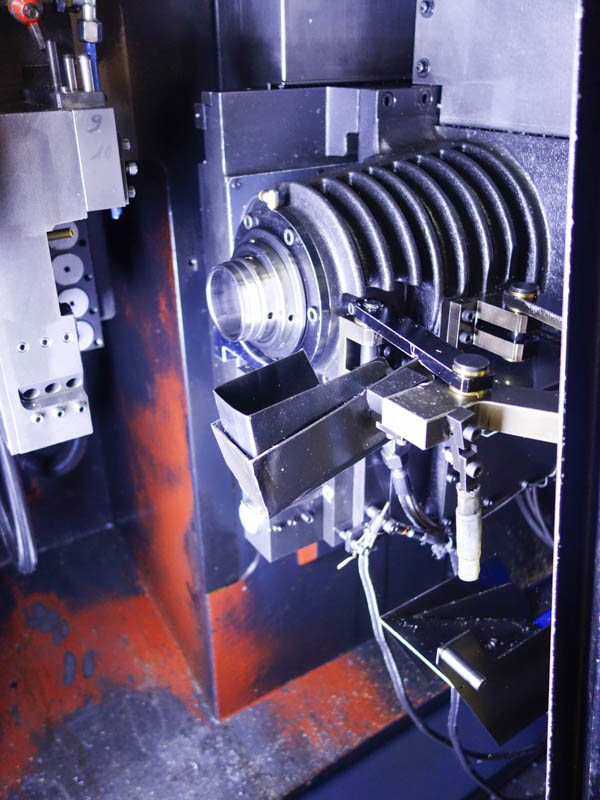

Counter-spindle
Spindle power : 3.7 kW
Spindle speeds : 6500 rpm
Max. bar diameter : 38 mm
C axis indexing precision : 0.001 °
X/Z stroke : 326 / 320 mm
Rapid traverse rate : 18 m/min

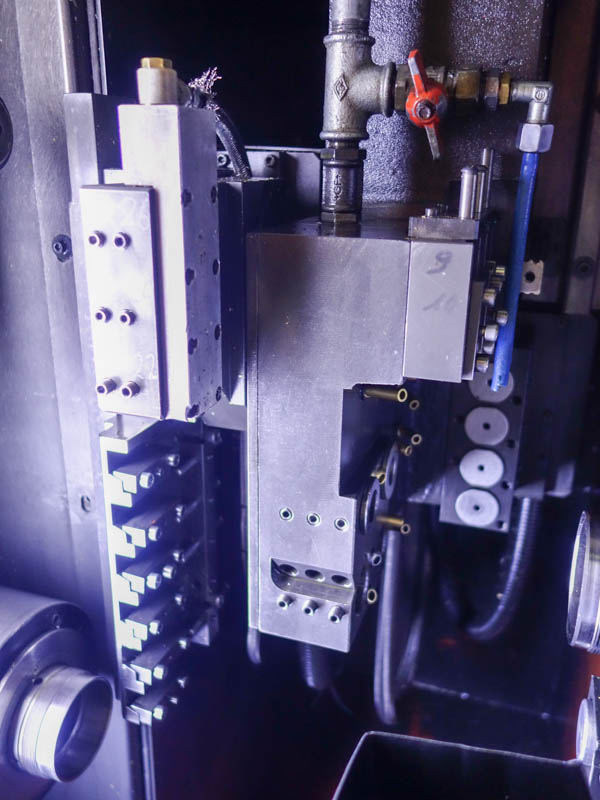

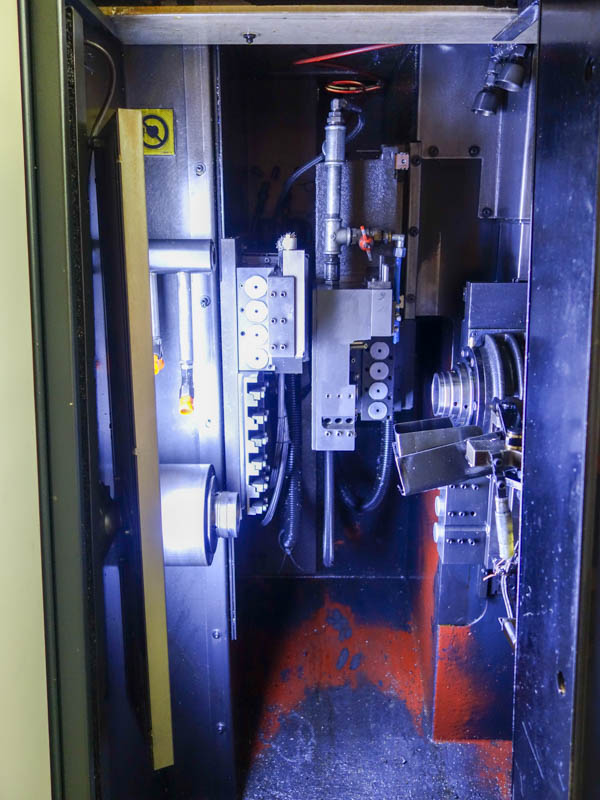

Tool-holders slide 1
X stroke : 65 mm
Y stroke : 350 mm
Number of fixed tool holders : 5
Number of turning tool holders : 3
Live tools speed : 5000 rpm
Tool-holders slide 2
Y stroke : 326 mm
Number of fixed tool holders : 4
Number of turning tool holders : 4
Live tools speed : 5000 rpm
Power supply
Supply voltage : 400 V
Total installed power : 40 kVA
Weight & dimensions
Machine floor space : 5.350 x 2.000 mm
Machine height : 2.300 mm
Machine weight : 4700 kg
Machine hours
Number of hours under power : 59.845 h
Number of working hours : 40.405 h
composition and accessories

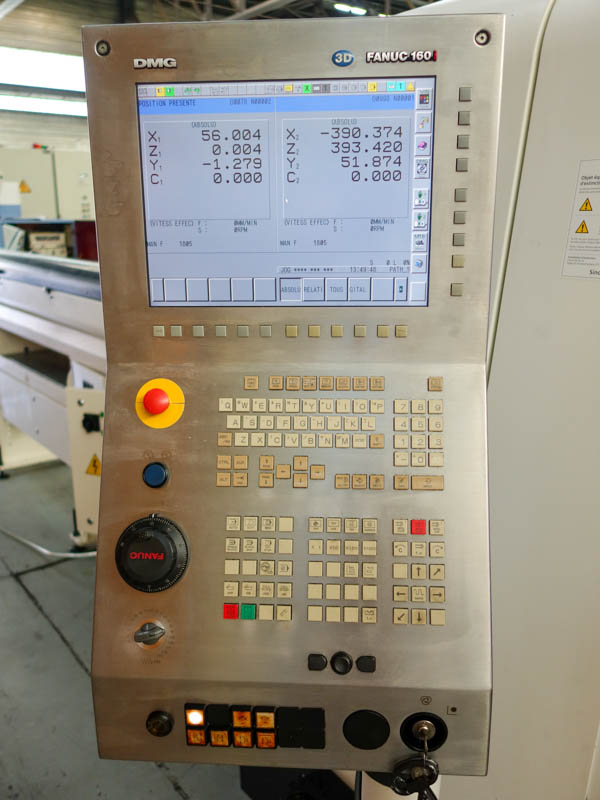

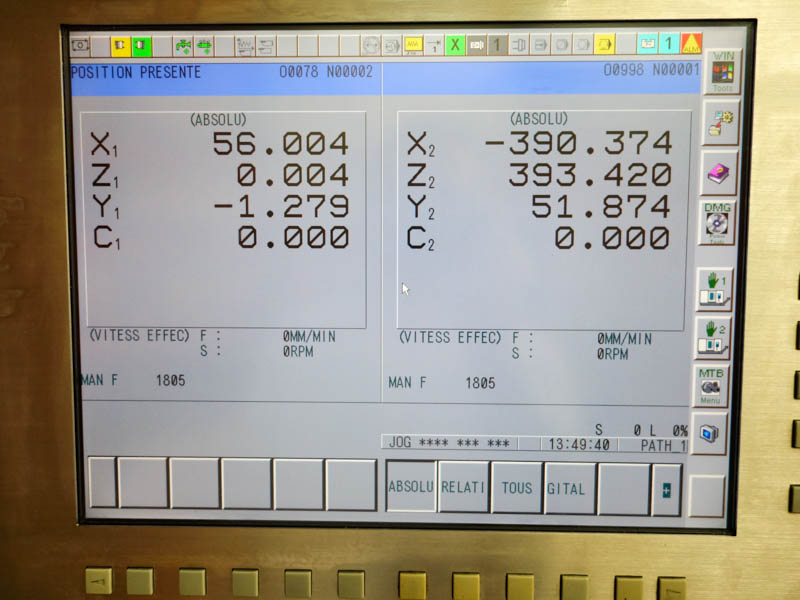

CNC : Fanuc 160i
3 colors status lamp

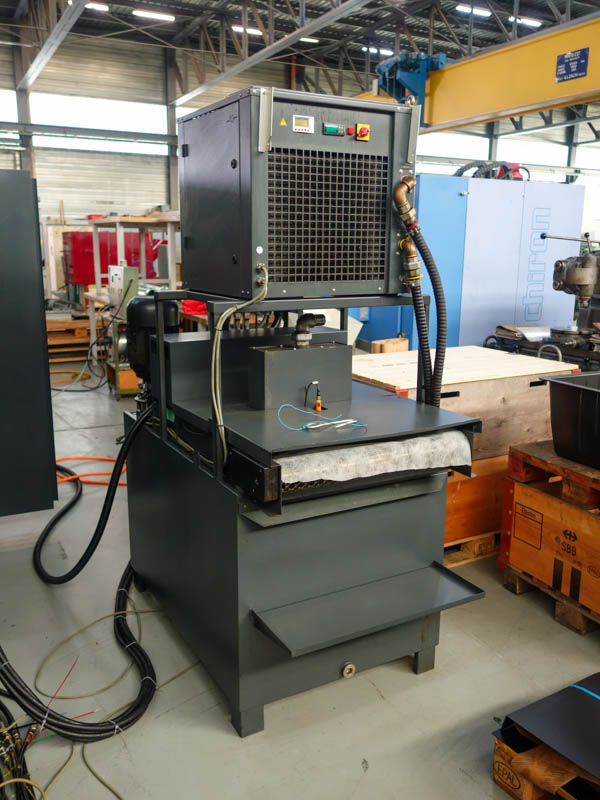

Coolant tank
* with high-pressure pump : 20 bars

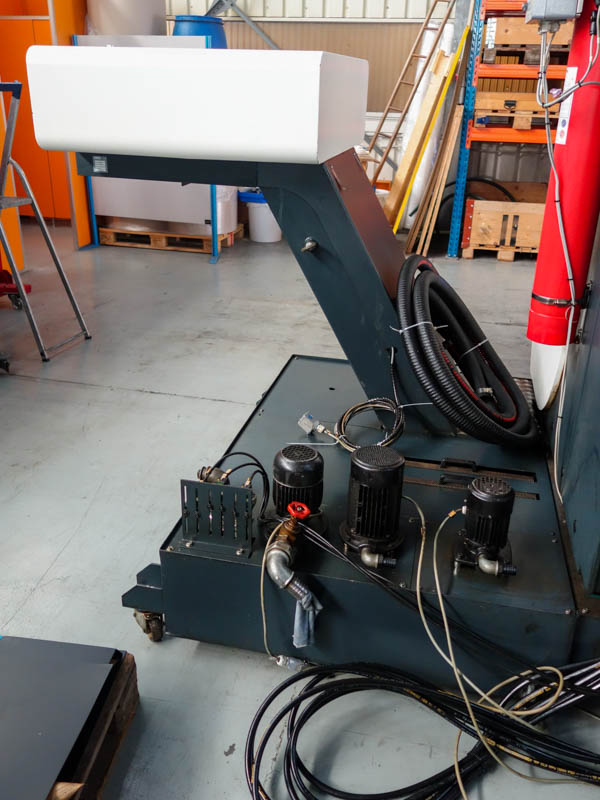

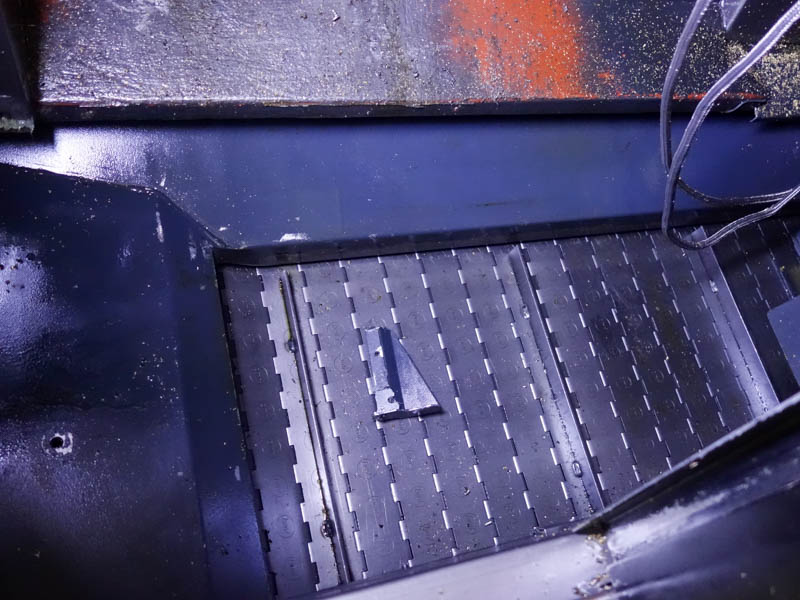

Chips conveyor
Oil mist extractor : ELBARON
Parts catcher
Parts conveying strip

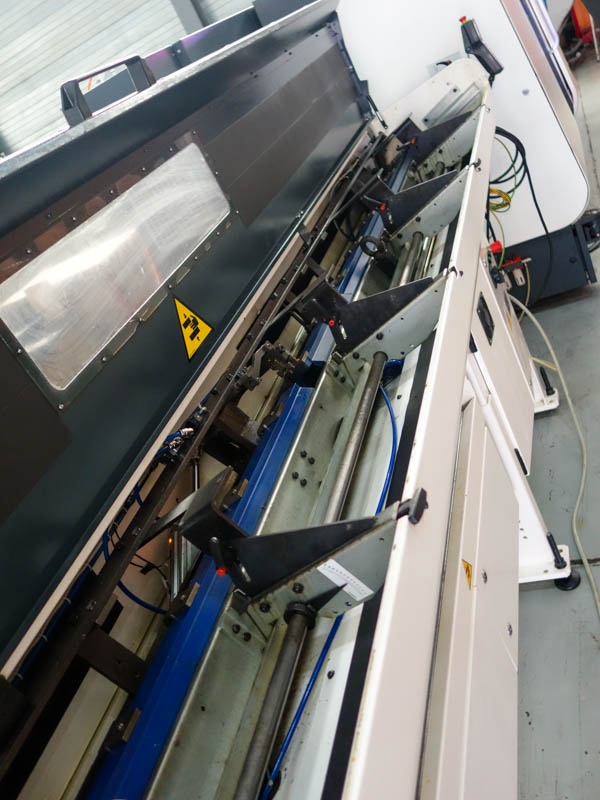

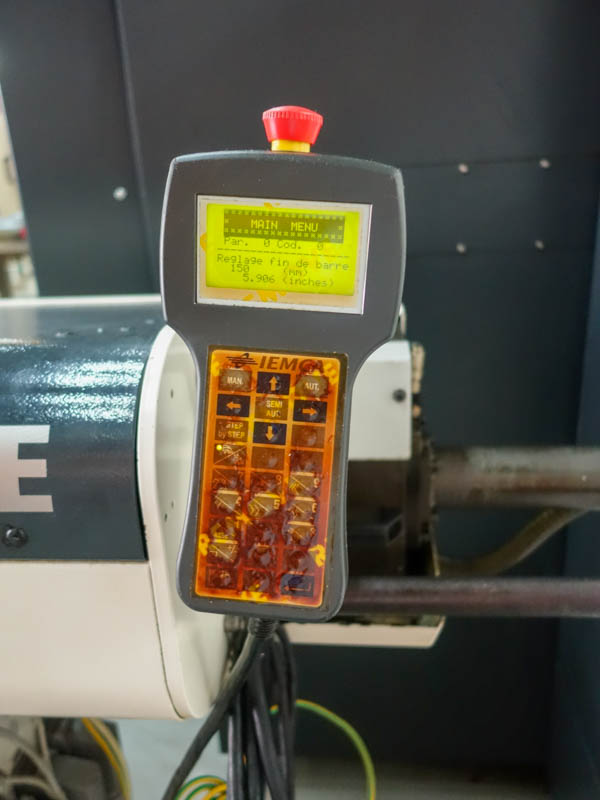

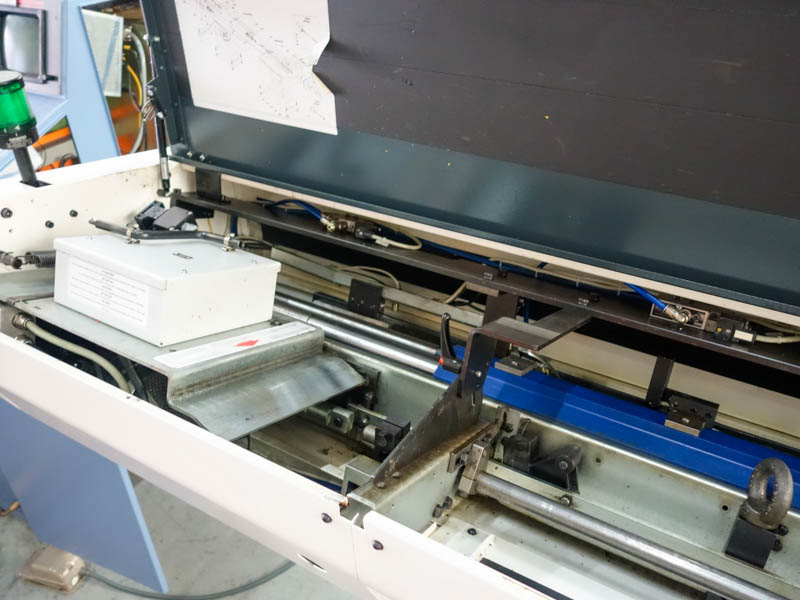

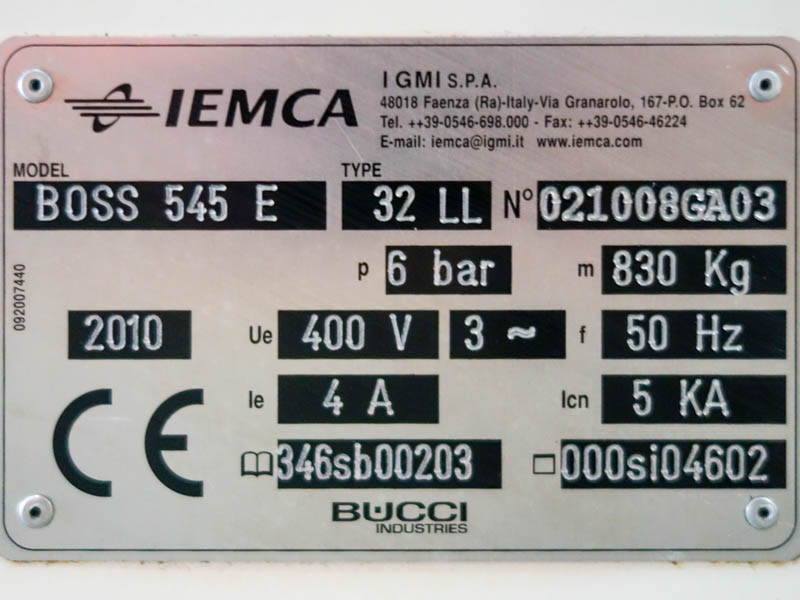

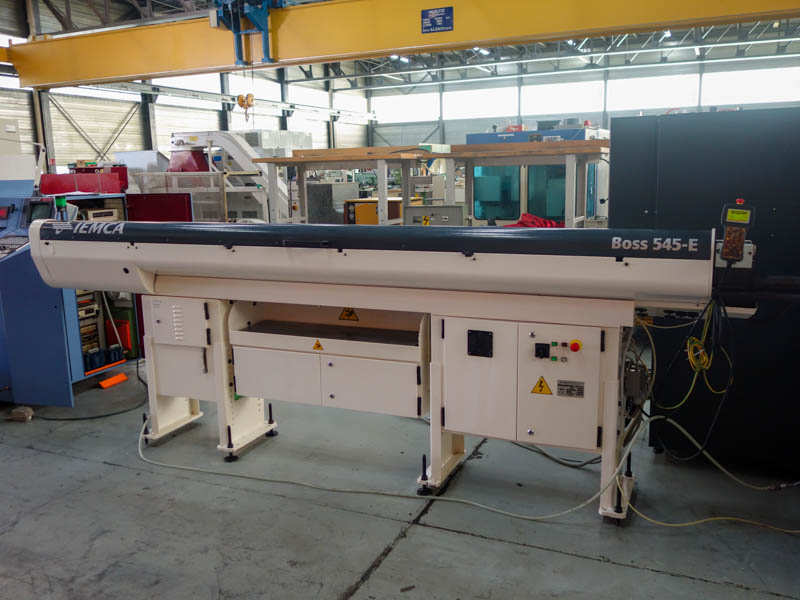

Bar loader : IEMCA BOSS 545-E

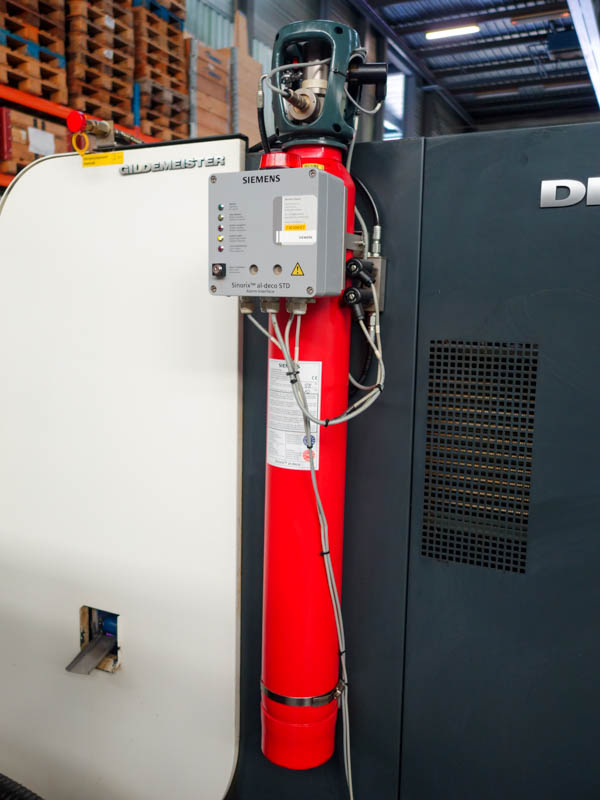

Fire extinguisher *
* NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
Number of turning tool holders : 6
